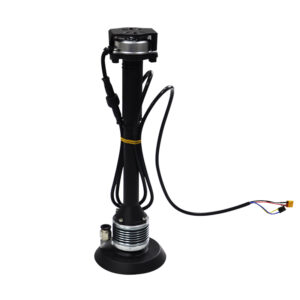

Advanced Centrifugal Nozzle Technology for JOYANCE Crop Sprayer Drones – Precision, Efficiency, and Durability
Introduction
JOYANCE Agricultural Plant Protection Drones are revolutionizing modern farming with cutting-edge centrifugal nozzle technology. Designed for precision spraying, these nozzles ensure uniform pesticide distribution, reduced chemical waste, and enhanced crop protection. Engineered for durability and performance, JOYANCE’s centrifugal nozzles are ideal for a wide range of agricultural applications, from dense orchards to open-field crops.
Technical Specifications
| Feature | Specification |
|---|---|
| Shell Material | High-strength Aluminum Alloy |
| Nozzle Height | 30 cm |
| Mist Particle Size | 50-200 microns (adjustable) |
| Flow Rate | 200-2000 mL/min |
| Spray Width | 1.5-2.0 meters |
| Power Supply | 12-14S LiPo Battery |
| Motor Speed | 20,000 RPM |
| Control Signal | PWM (1000-2000μs) |
| Power Consumption | 60W |
| Weight | 260 grams |
| Total Length | 300 mm |
| Protection Rating | IP68 (Dustproof & Waterproof) |
Key Advantages of JOYANCE Centrifugal Nozzles
-
Superior Atomization Performance
-
Utilizes a DJI-grade atomizing disc for double atomization, ensuring ultra-fine droplets (50-200 microns) for optimal pesticide adhesion and coverage.
-
Uniform droplet distribution minimizes chemical waste and maximizes pest control efficiency.
-
-
Robust & Long-Lasting Design
-
Brushless motor + ESC integration enhances durability, reducing wear and tear.
-
IP68-rated protection against dust, water, and harsh field conditions.
-
-
High-Efficiency Spraying
-
Supports large flow rates (up to 2000 mL/min), ideal for high-coverage applications.
-
Low-speed flight compatibility (<4 m/s) ensures precise application without drift.
-
-
Smart & Integrated Structure
-
All-in-one design (motor, ESC, and atomizing disc) simplifies maintenance and improves reliability.
-
Ideal Use Cases
✅ Dense Crops (Fruit Trees, Vineyards)
-
Perfect for thick foliage where deep penetration is required.
✅ Low-Speed Drone Operations (<4 m/s)
-
Ensures minimal drift and maximum chemical deposition.
✅ Low-Wind Conditions
-
Best used in calm or light breeze environments to prevent droplet dispersion.
Limitations & Considerations
⚠ Not Suitable for High-Speed Flights (>4 m/s)
-
Risk of liquid hoisting and spray drift at higher speeds.
⚠ Wind Sensitivity
-
Fine droplets (50-200μm) are prone to wind interference, requiring careful weather monitoring.
⚠ Higher Initial Cost
-
Advanced brushless motor and IP68 protection increase production costs.
⚠ Limited Lifespan in Harsh Conditions
-
Despite durability, prolonged exposure to corrosive chemicals may reduce longevity.
Conclusion
JOYANCE’s centrifugal nozzles represent a leap forward in agricultural drone technology, combining precision, durability, and efficiency for modern farming needs. While they excel in low-speed, high-coverage spraying, operators must consider environmental factors to maximize performance.
For farmers seeking reliable, high-performance crop protection, JOYANCE’s centrifugal nozzle system delivers unmatched spray accuracy and chemical efficiency, making it a top choice for precision agriculture.
JOYANCE – Innovating Farming, One Spray at a Time.
