Joyance latest technology high security industrial professional cleaning building clean window drone (JTC10)
Joyance latest technology high security industrial professional cleaning building clean window drone
4-axis frame design
60m maximum flight altitude
4100PSI high pressure water pump pressure
Why Choose Us
- Original factory, quality is guaranteed.
- Best wholesale price for bulk order in China
- Reliable manufacturer factory supplier wholesaler
Joyance latest technology high security industrial professional cleaning building clean window drone (JTC60)
Intro videos:
Main paremeters:
| JTC60 Cleaning Drone Specification | ||||
| Application | Clean windows, glass, facades, roofs, solar panels | |||
| Flight altitude range | 0-60m | |||
| Flight parameters | Flight altitude | 100m | ||
| Ascent speed | 5m/s | |||
| Spraying width | 50mm | |||
| Spray speed | 1m/s | |||
| Water flow | 10L/m | |||
| Wind resistance level | Level 7 | |||
| Waterproof level | Moderate rain, the drone body can be washed with water | |||
| Spray washing area | Approx. 450㎡/Flight | |||
| Flight Duration | Altitude | Duration | Remaining battery power | |
| 5m | 22‘50 | 20% | ||
| 10m | 21’13 | 20% | ||
| 30m | 19’10 | 20% | ||
| 60m | 14‘35 | 20% | ||
| Standard kit | PowerX8 motor*4 | 5 ~7kg/axis Single-axis, load capacity: 5~7kg/axis, Protection class IPX6. | ||
| Propellers *4 | 3011, 30-inch carbon fiber folding propellers, maximum pulling force 15KG. | |||
| Drone Frame *1 | Carbon fiber plate, 50mm diameter carbon fiber tube, 50mm wide aviation aluminum alloy parts | |||
| Smart Battery*1 | 14S200000MAH smart battery, Life Span >=600 cycles or 2 years | |||
| Charger*1 | 6055 intelligent dual charging, charging 25 minutes/one battery (power above 95%) | |||
| Remote controller*1 | Model H12Pro, Ultra-high definition, high brightness, 5.5-inch screen, Pixel： 1920*1080, 1000nits, Inner battery 1000 mAh, 6-20 working hours. | |||
| FPV*1 | Three-in-one camera, resolution 1280*720, camera angle 120°; LED 6W, capable of night operation. | |||
| Electricity Pressure Washer/Petrol Pressure Washer(any one)*1 | Electricity Pressure Washer: 3200PSI, powered by electricity. Petrol Pressure Washer: 3200PSI, 7.5HP, powered by gasoline. |
|||
| Water pipe*1 | Length: 60m, Weight:16KG, Pressure: 5800PSI, Outer diameter：14mm, Inner diameter：8mm |
|||
| Obstacles avoidance radar*1 | Front obstacle avoidance radar, range 1.5-27cm, maximum EIRP: 30dBm |
|||

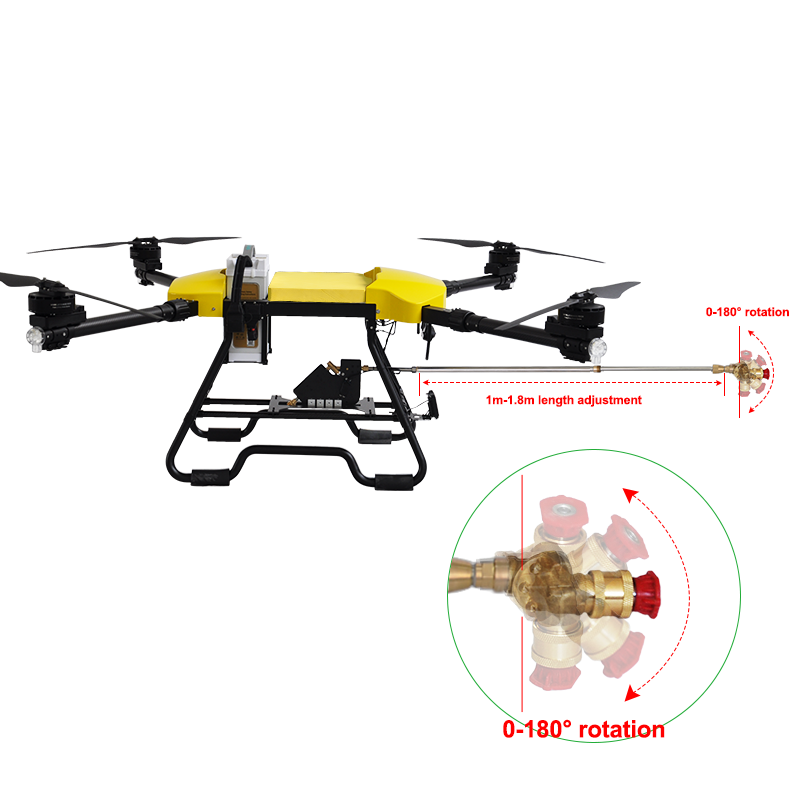

| Spray boom*3 | Stainless steel, 1m-1.8m length, 0-90° rotation adjustable. | |||
| Nozzle *4 | Brass nozzles, 0°, 15°,25° 40° adjustable. | |||
| Weight | Net weight | 12KGS (excluding battery and water pipe) | ||
| Maximum load | 7.4KGS | |||
| Maximum take-off weight | 24KGS | |||
| Drone size | Expand Size | 1.12m*1m*0.52m | ||
| Folded size | 0.86m*0.62m*0.52m | |||
| Wheelbase | 1.85m | |||
| Packing case | Aviation aluminum box | Waterproof and fireproof aviation aluminum packing box | ||
| Aluminum box size | 0.97m*0.92m*0.75m | |||
| Aluminum box weight | 27KGS | |||

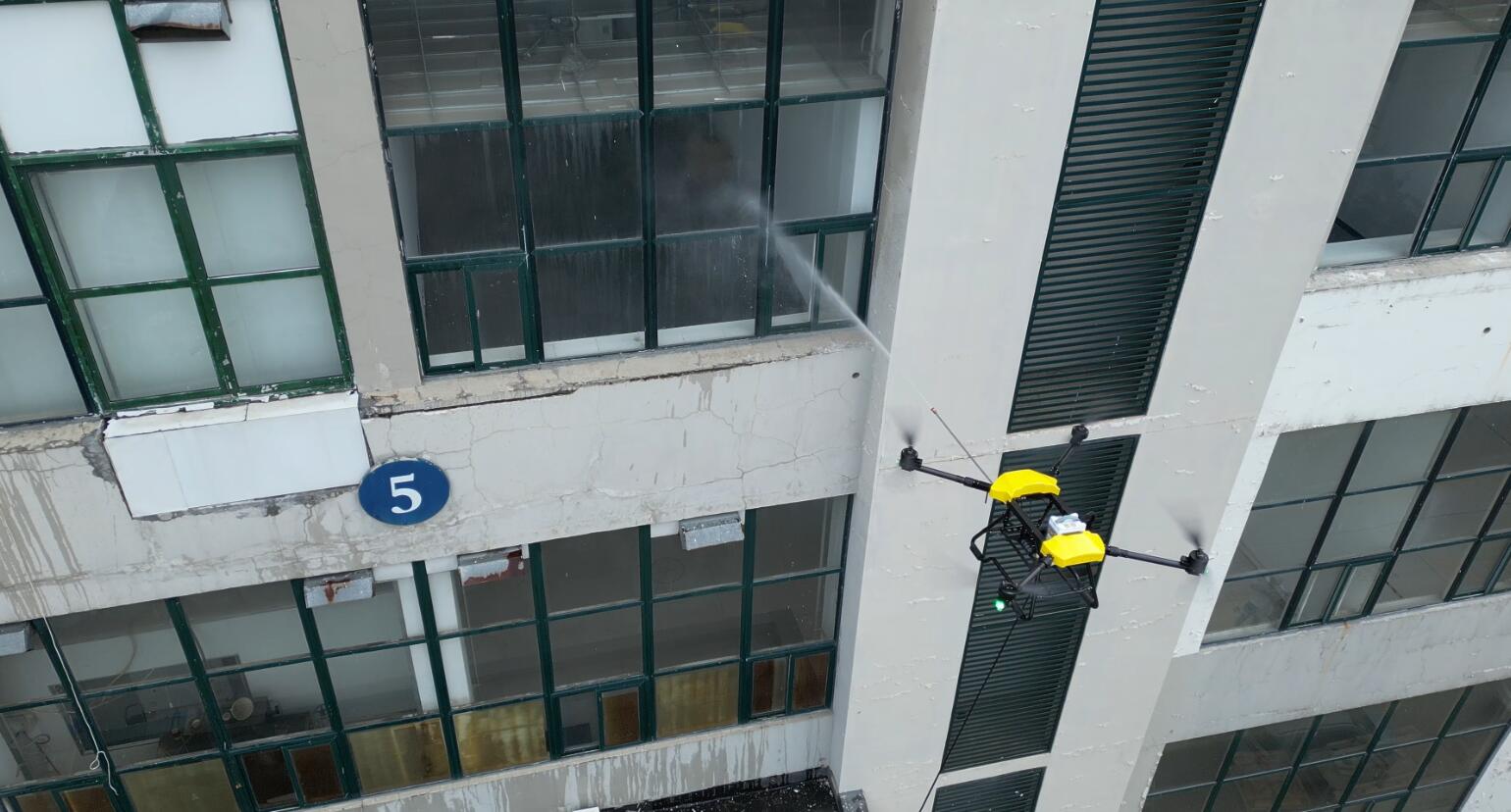

The JTC60 cleaning drone can pull water pipes (0-60 meters) from the ground for cleaning operations. The ground is equipped with a 3200PSI high-pressure water pump. Suitable for cleaning vertical walls or glass curtain walls. A single fully charged battery supports the drone flying for 15 to 25 minutes. Charging time for a single battery is 20-25 minutes. Generally speaking, we recommend that a drone should be equipped with at least 4 batteries + 2 chargers to achieve continuous operation. To ensure flight safety. The front of the drone is equipped with a propeller protective cover. In addition, it is equipped with a millimeter-wave obstacle detection radar to ensure that the closest safe distance between the drone and the wall is 1.5-2 meters. This is the high-pressure explosion-proof water pipe we use, with one section every 20 meters. The weight of each section is 1.9KGS. It can withstand the maximum water pressure of 5800PSI.
Features:
Multi-angle nozzles：
FPV 1080P camera real time image transmission
Spray cleaning foam
10-60 meters height
3200PSI super high water pressure
Change spray guns for roof cleaning
Advantage of cleaning drones VS manual cleaning service
Safety: Drone cleaning can protect the personal safety of workers and prevent them from being in high altitude, steep or dangerous locations. Reduce the occurrence of accidents and improve work safety.
Efficiency: Drone cleaning can complete large-area cleaning work in a short time, which is more efficient than traditional cleaning methods. Machine efficiency is more than 50 times that of manual efficiency.
Cost-effectiveness: The efficient work of drone cleaning reduces manual labor, lowers labor costs, and creates more profits.
Environmentally friendly：Compared with traditional cleaning methods, drone cleaning usually uses less cleaning agent and water, reducing the impact on the environment. In addition, drone cleaning can reduce atmospheric pollution because it does not rely on a power system that burns fuel.
Real-time monitoring: Drone cleaning is usually equipped with cameras and sensors, which can monitor the cleaning process in real time, and operators can see the quality and effect of cleaning at any time
Flexibility: Drones can adapt to various environments and can work in areas that are difficult to reach manually, such as high places or narrow spaces
Accuracy: Because the drone can clean through preset paths, its movement can be more precise, ensuring cleaning coverage and quality.
