Joyance 2024 16HP Petrol Mower: Remote Controlled, CE EPA Certified, Adapted for 60° Slopes, 800mm Wide Cutting Path（JT800) (复制)

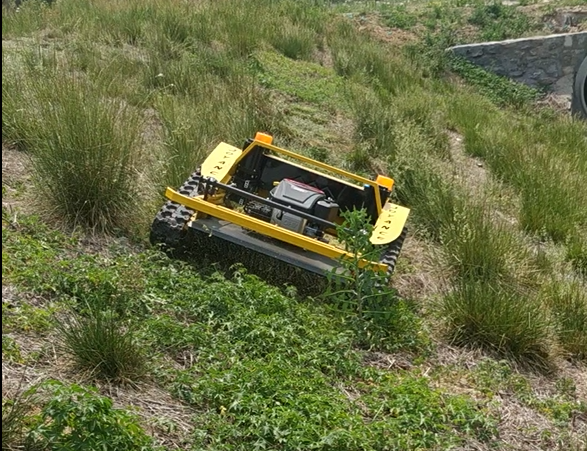

Remote control rubber track steep slope mower 800mm cutting width
Why Choose Us
- Original factory, quality is guaranteed.
- Best wholesale price for bulk order in China
- Reliable manufacturer factory supplier wholesaler
♦ Main Parameters
| 1 | Model | JT800 |
| 2 | Cutting Width | 800mm |
| 3 | Walking Speed | 0-4km/h |
| 4 | Working Degree | 0-60° |
| 5 | Adjustable Cutting Height | 10~180mm |
| 6 | Min Ground Clearance | 20mm |
| 7 | Remote Control Range | 200m |
| 8 | Machine size | 1240*1170*660mm |
| 9 | Net weight | 235KGS |
| 10 | Package Size | 1320*1220*810mm |
| 11 | Gross Weight | 290kg |
| Engine | ||
| 12 | Fuel Type | Gasoline |
| 13 | Brand | Loncin |
| 14 | Power / Emission | 16Hp / 452cc |
| 15 | Engine Type | Single cylinder, four stroke |
| 16 | Start Method | Electric start |
| 17 | Emission Standard | Euro 5/EPA |
| 18 | Fuel Tank | 7L |
| 19 | Working Time | 4h |
| Walking Motor | ||
| 20 | Motor Type | Brushless electric traction |
| 21 | Voltage / Power | 48V / 1000W |
| 22 | Dynamo | 56V 4000W |
| 23 | Battery | 48V 20Ah |
♦ Intro video:
♦ Detailed photo
♦ Main Accessories
| Forced Lubrication Gasoline Engine – Locinn 16HP / 452CC
The gasoline engine equipped with an oil pump is capable of forced lubrication, which is essential for reliable
operation and preventing premature wear.
This system ensures that the engine receives a constant supply of pressurized oil for effective lubrication, particularly
during the demanding conditions of driving on a slope.
The engine meets both Euro 5 emission standards and international EPA certification.
|
 |
| Mower Blades
The blades are made of resilient and durable manganese steel material.
The cutting edge of the blades is serrated, which prevents grass from sticking during lawn mowing, especially fresh
grass.
The serrated design also enables efficient grass cutting, even when encountering hard objects like stones, reducing
the risk of blade damage.
|
  |
| Frame
The frame of our lawn mower is heavy and made of strong materials.
The weight of products with the same specification on the market is 135kg, while ours is 150kg, which is 17% more
than similar products.
Except that the control panel and control box are made of 2mm thick steel plates, most of the frame of the smart
lawn mower is made of 4mm thick steel plates, which are durable and not easily deformed.
Some important parts are made of 6mm thick steel plate.
Under normal operation, the mower frame can be used for more than 5 years.
|
 |
| Rubber Track
15cm wide rubber track
Crawler tank design, can work normally below 50 degree slope.
The inside of the track adopts a steel frame structure, and the design of the external rubber track conforms to
engineering principles, which is wear-resistant and durable.
It is very powerful to climb over ditch, swamps, steep slopes, wasteland, etc.
The crawler track service life can reach more than 5 years.
|
 |
| Servo Motor
JOYANCE servo motor’s coil frame and enameled wire
are all made of high-temperature resistant materials.
We use SH-grade magnets, which have a higher
temperature resistance compared to H and M grades.
This makes our motor less prone to demagnetization
and more durable.
|
 |
| Driving Wheel
JOYANCE driving wheels are cast and then CNC engraved, which are strong and durable.
After powder coating treatment in the later stage, it is waterproof, sun-proof, and has a long service life.
|
 |
♦ Features
Easily handle slopes below 60 degrees
A KEY electric start
A KEY adjust grass cutting height – 10~180mm
Automatic cruise control mode
Upgrade remote control mowers with HD camera
Optional multi-function snow plow
♦ Packaging & Shipping
1) Security
Our remote-controlled lawnmower allows for safe operation on hazardous slopes by enabling remote control functionality.
This feature keeps staff away from the risk of rolling down the slope while still efficiently mowing the grass.
2) Worm gear & worm reducer
The walking motor is equipped with a worm gear and worm reducer.
The nature of this reducer design provides an inherent self-locking feature.
This means that even when power is cut off, the worm gear mechanism prevents the motor from moving due to the high friction generated between the worm and worm wheel.
As a result, the motor remains stationary, ensuring safety and preventing any unintended sliding or rolling on the slope.
3) Walking motor & reducer
Our mower features a powerful brushless 48V motor with a 110mm diameter coil, ensuring strong power output with minimal heat generation.
It is designed to support long hours of continuous operation.
Equipped with a large RV063 gearbox with a high reduction ratio, our slope mower guarantees strong torque at low speeds and exceptional climbing ability.
4) Oil pump & forced lubrication
The gasoline engine equipped with an oil pump is capable of forced lubrication, which is essential for reliable operation and preventing premature wear.
This system ensures that the engine receives a constant supply of pressurized oil for effective lubrication, particularly during the demanding conditions of driving on a slope.
5) High efficiency & labor savings
Our lawn mower, with a travel speed of up to 4 km/h and a cutting width of 800mm, offers high efficiency.
While requiring staff for remote control operation, the wide cutting width significantly reduces labor costs, making it a cost-effective solution.
Our remote-controlled lawnmower allows for safe operation on hazardous slopes by enabling remote control functionality.
This feature keeps staff away from the risk of rolling down the slope while still efficiently mowing the grass.
2) Worm gear & worm reducer
The walking motor is equipped with a worm gear and worm reducer.
The nature of this reducer design provides an inherent self-locking feature.
This means that even when power is cut off, the worm gear mechanism prevents the motor from moving due to the high friction generated between the worm and worm wheel.
As a result, the motor remains stationary, ensuring safety and preventing any unintended sliding or rolling on the slope.
3) Walking motor & reducer
Our mower features a powerful brushless 48V motor with a 110mm diameter coil, ensuring strong power output with minimal heat generation.
It is designed to support long hours of continuous operation.
Equipped with a large RV063 gearbox with a high reduction ratio, our slope mower guarantees strong torque at low speeds and exceptional climbing ability.
4) Oil pump & forced lubrication
The gasoline engine equipped with an oil pump is capable of forced lubrication, which is essential for reliable operation and preventing premature wear.
This system ensures that the engine receives a constant supply of pressurized oil for effective lubrication, particularly during the demanding conditions of driving on a slope.
5) High efficiency & labor savings
Our lawn mower, with a travel speed of up to 4 km/h and a cutting width of 800mm, offers high efficiency.
While requiring staff for remote control operation, the wide cutting width significantly reduces labor costs, making it a cost-effective solution.
