Joyance Crawler Self Propelled RC Robot Pesticide Spraying Machine For Agriculture (JTM800 – S)
Do you need only one machine makes various works in the orchard so easy??? Just do it now!
Multifunctional remote control robotic agriculture farm machine 5 in 1.
Specifically designed for orchards / fruit trees.
Orchard weeder / orchard sprayer/transportation tool/automatic lifting platform/snow removal machine
Why Choose Us
- Original factory, quality is guaranteed.
- Best wholesale price for bulk order in China
- Reliable manufacturer factory supplier wholesaler
Product parameters
|
Model
|
Parameters
|
|
|
Base Lawn mower
|
Model
|
JTM800 |
|
Size (L*W*H)
|
1700*850*850MM
|
|
|
Weight
|
340 kgs
|
|
|
Cutting width
|
800mm | |
|
Working slope
|
≤60 degrees
|
|
| Working slope (with sprayer) |
≤30 degrees
|
|
|
Remote control distance
|
200 m
|
|
| Lawn mower engine | Fuel Type | Gasoline |
| Brand | Loncin | |
| Power / Emission | 16Hp / 452cc | |
| Engine Type | Single cylinder, four stroke | |
| Start Method | Electric start | |
| Emission Standard | Euro 5/EPA | |
| Fuel Tank | 13L | |
| Working Time | 6 h | |
|
Agriculture Sprayer machine
|
Engine model
|
192F
|
|
Engine structure type
|
Horizontal bar four stroke
|
|
|
Engine fuel type
|
gasoline
|
|
|
Average engine fuel consumption
|
1.5-2 L/H
|
|
| Power / Emission |
12.2HP / 452 CC
|
|
|
Spray pattern
|
Air blowing type
|
|
|
Number of nozzles
|
10 pcs | |
| Pesiticide tank capacity | 200 L | |
|
Single-sided spray width
|
4-5 m | |
|
Water pump model
|
WY-60B3 plunger pump
|
|
|
Pump pressure
|
1.0-4.0 mpa
|
|
|
Pump speed
|
800-1200 rpm
|
|
|
Pump flow
|
32-48 L/MIN
|
|
|
Pump power
|
6.5HP | |
| Transport vehicle | Machine Size | 1300*1300*800mm |
| Max load | 500 KGS |
Intro Video:
Detailed photos

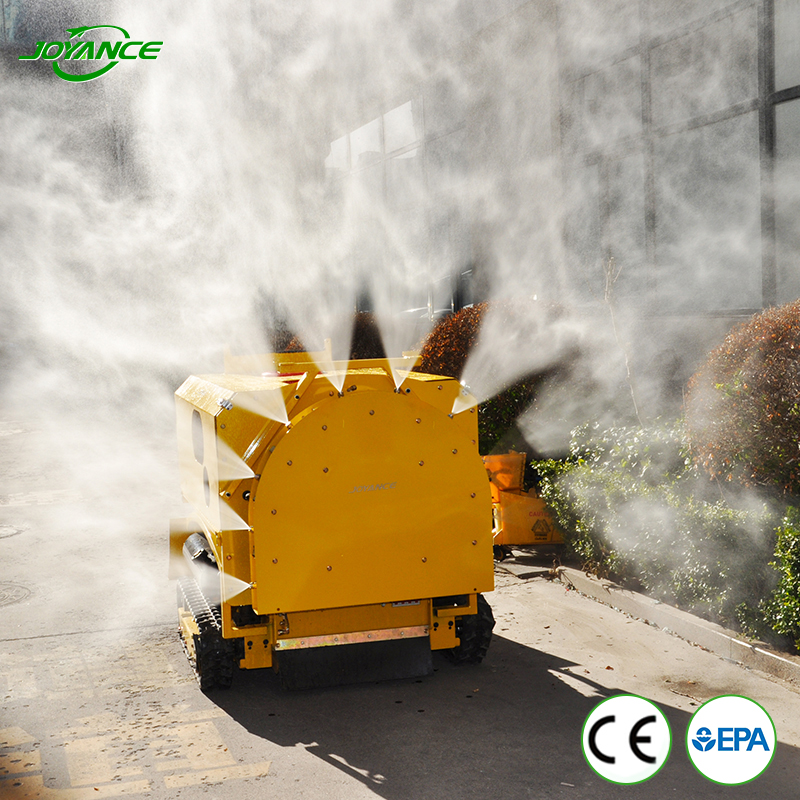

Real spraying effect
Features
Do you need only one machine makes various works in the orchard so easy??? Just do it now!
Multifunctional remote control robotic agriculture farm machine 5 in 1.
Specifically designed for orchards / fruit trees.
Orchard weeder / orchard sprayer/transportation tool/automatic lifting platform/snow removal machine
Robot Agricultural Spraying Machine Automatic orchard weeder Remote control transport vehicle
The main components
| Forced Lubrication Gasoline Engine – Locinn 16HP / 452CC
The gasoline engine equipped with an oil pump is capable of forced lubrication, which is essential for reliable
operation and preventing premature wear.
This system ensures that the engine receives a constant supply of pressurized oil for effective lubrication, particularly
during the demanding conditions of driving on a slope.
The engine meets both Euro 5 emission standards and international EPA certification.
|
 |
| Frame
The frame of our lawn mower is heavy and made of strong materials.
The weight of products with the same specification on the market is 135kg, while ours is 150kg, which is 17% more
than similar products.
Except that the control panel and control box are made of 2mm thick steel plates, most of the frame of the smart
lawn mower is made of 4mm thick steel plates, which are durable and not easily deformed.
Some important parts are made of 6mm thick steel plate.
Under normal operation, the mower frame can be used for more than 5 years.
|
 |
| Servo Motor
JOYANCE servo motor’s coil frame and enameled wire
are all made of high-temperature resistant materials.
We use SH-grade magnets, which have a higher
temperature resistance compared to H and M grades.
This makes our motor less prone to demagnetization
and more durable.
|
 |
| Anti-corrosion high pressure nozzle
Adjustable angle. 110 degree cone spray. Ceramic nozzle, corrosion resistant. |
 |
Packing and Shipping
More detailed price info will be provided if interested. Pls contact by
WhatsApp +86 18053626824 (Sophie Liu) or by link: https://wa.me/8618053626824
E-mail: 807@joyancetech.com
