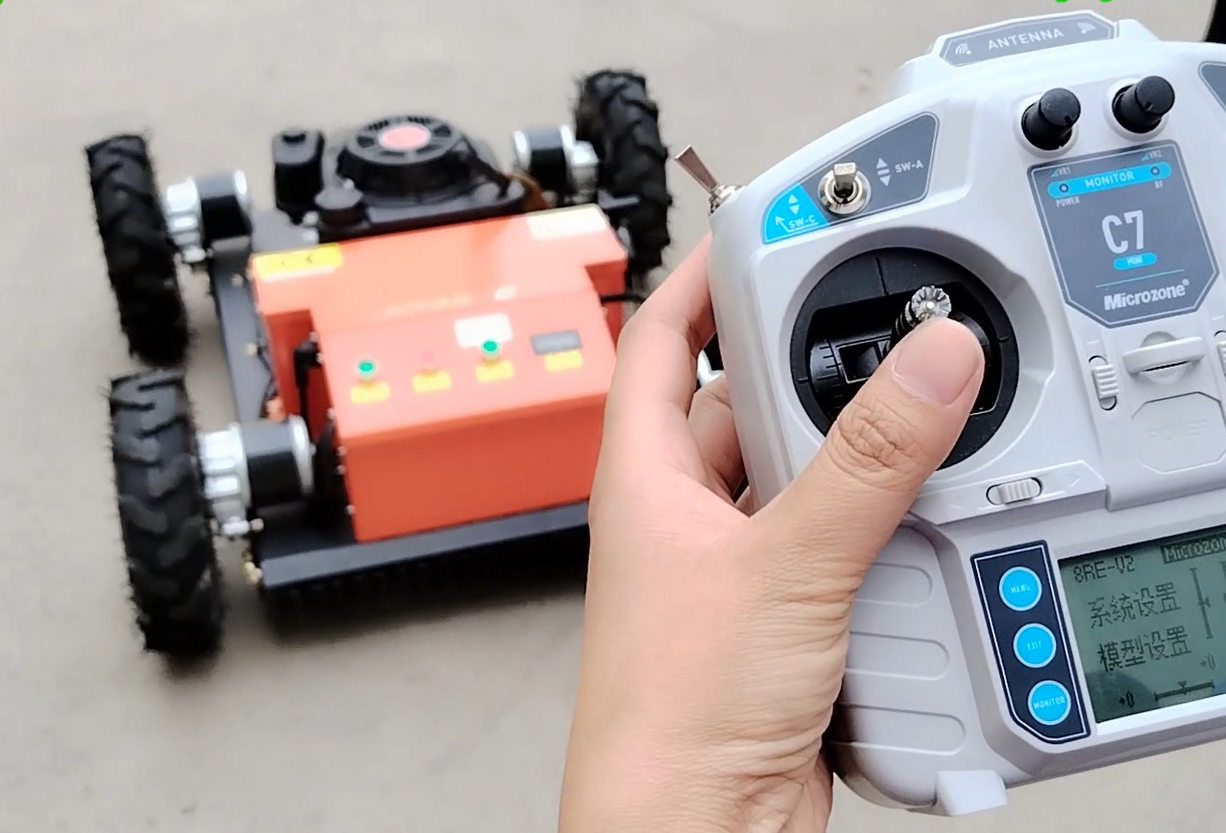

How to operate robot remote control lawn mower JT550S

How to operate robot remote control lawn mower JT550S



Before using the mower for the first time, please charge it with the provided charger.



When the charging indicator turns green, it means it is fully charged.



Please inject 92# gasoline and add engine oil.



Engine oil filler port   92# gasoline filling port.



How to use the emergency button.

Press it to start the emergency (SAFE) mode.

The mower cannot be started when the emergency button is turned on.



In an emergency, you can immediately press the emergency stop button

and the lawn mower will stop working immediately.



Please turn off the emergency switch before using the lawn mower.



Power On – Turn on RC



Power on the Main Power

Before starting the engine,

pull up the throttle adjuster and turn on the engine damper switch.



Engine start method 1:

Remote start with one button on the remote control



Push the RC button upward

until the engine starts successfully. Then release it.



Do not holding the start button in the start state for more than 3 seconds,

otherwise the engine or starter may be damaged.



Engine starting method 2:

Press and hold the Start button on the lawn mower control panel

until the engine starts successfully.



After the engine starts, close the engine damper

and pull the throttle adjuster down to the throttle position.



DO NOT leave the engine DAMPER open for a long time,

otherwise the engine will be damaged.



Adjust the throttle – Cutting knife speed.



Manual control mode



When the engine is not started, the mower will use the

backup battery to power it. The user can use the remote control

to control the movement of the mower.





The backup battery will be charged automatically

when the engine is started.





automatic cruise control mode.



When the lawn mower is moving, push the button upwards once.

The lawn mower will start the automatic cruise control mode.



In cruise control mode, you can control the direction of the mower.



Push the SW-D button up once more to exit the automatic travel mode.



Adjusting the mower cutting height – SW-A button



Adjust the snowplow. Once the adjustment is complete,

turn the knob to the center position (neutral).



Low speed/high speed switching.

SW-C key Down – Low speed mode.



Low speed/high speed switching.

SW-C key Up – High speed mode.



Engine shutdown method 1:

Press the SW-B button on the remote control downward

until the engine shuts down.



Engine shutdown method 2:

Press and hold the Stop button until the engine shuts down.



Turn off the Main Power.  Turn off the RC.
